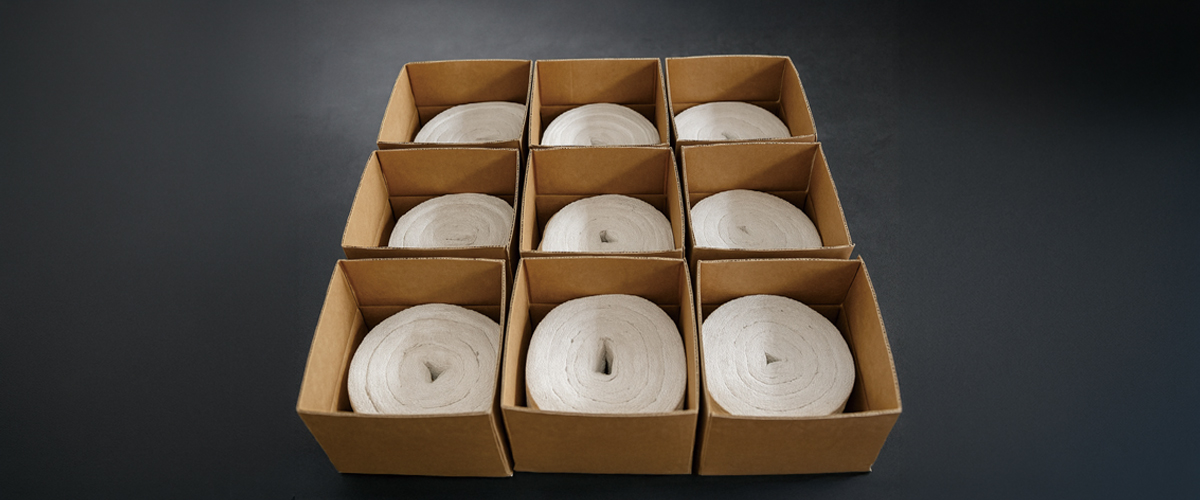

Ceramic Fiber Blanket
SDTECH Ceramic Fiber Blanket is a refractory insulation material for extreme high-temperature applications, manufactured using an advanced spinning process. Its long fiber length and high tensile strength give it excellent shape retention, while remaining lightweight and highly durable. The operating temperature range is 950°C (1,700°F) to 1,450°C (2,500°F).
1. Features
- Excellent insulating performance due to low thermal conductivity
- Outstanding thermal shock resistance and high-temperature stability
- High tensile strength and sound absorption
- Easy to cut and install
- Asbestos-free
- Excellent resistance to chemical corrosion
- Rapid thermal response even inside heated furnaces
2. Applications
- Ceramic industry: continuous and batch furnaces, car bottom insulation and sealing
- Petrochemical and refining industry: insulation for high-temperature pipes and ducts
- Iron and steel industry: lining insulation and sealing for melting furnace doors, insulation for heat treatment furnaces, annealing furnaces, and reheating furnaces, ladle cover applications
- Power generation: insulation for boilers, pipes, and ducts
- Construction: fire protection for high-rise buildings, high-temperature filter media
3. Dimensions
- 6 × 610 × 21,840
- 12.5 × 610 × 14,640
- 25 × 610 × 7,320
- 38 × 610 × 4,800
- 50 × 610 × 3,600
4. Specification
| Division | SD 1,100 | SD 1,260 | SD 1,360 | SD 1,430 | SD 1,500 | |
|---|---|---|---|---|---|---|
| Classification Temperature(℃) | 1,100 | 1,260 | 1,360 | 1,430 | 1,500 | |
| Density(kg/m³) | 96, 128-160 | |||||
| Linear Shrinkage(%) (24hrs@128kg/m³) |
≤ -4 (1,000℃) | ≤ -3 (1,100℃) | ≤ -3 (1,100℃) | ≤ -3 (1,350℃) | ≤ -3 (1,350℃) | |
| Thermal Conductivity (w/m·k) (128kg/m³) |
0.09 (400℃) 0.16 (800℃) |
0.09 (400℃) 0.16 (800℃) |
0.12 (600℃) 0.20 (1,000℃) |
0.16 (600℃) 0.20 (800℃) |
0.16 (600℃) 0.20 (800℃) |
|
| Chemical Composition (%) | Al₂O₃ | 42 - 44 | 45 -46 | 37 | 39 - 40 | 43 |
| Al₂O₃ + SiO₂ | 96 | 98 | - | - | - | |
| SiO₂ | - | - | - | - | - | |
| Cr₂O₃ | - | - | - | - | 2.5 - 3.0 | |
| ZrO₂ | - | - | - | 15 - 17 | - | |
| Al₂O₃+SiO₂+ ZrO₂(Cr₂O₃) |
- | - | 99 | 99 | 99 | |
