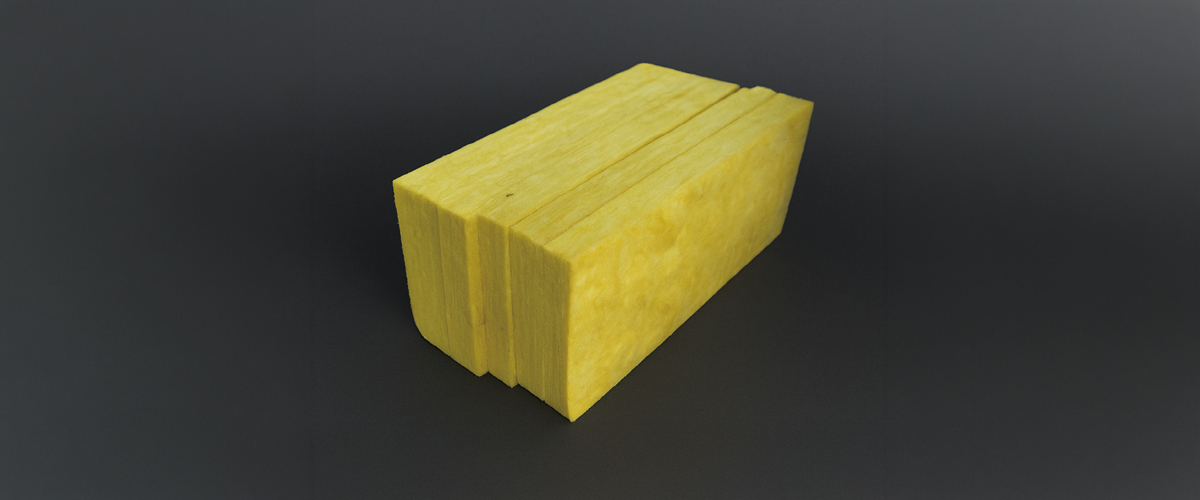

Mineral Board

SDTECH Mineral Board is produced by melting calcium silicate-based ore at high temperatures. Its application range is exceptionally broad compared to other insulation materials, covering fire resistance, sound absorption, heat retention, and thermal insulation in buildings; insulation, heat retention, and cold retention for plants and ships; and even agricultural seedling boards.
With fibers that are more flexible and resilient than those of competing products, and with low thermal conductivity, it is an essential material for energy savings.

1. Features
  • Excellent heat resistance
  • Superior insulating and heat retention performance
  • Proven workability
  • Low thermal conductivity
2. Applications
  • HVAC system installation
  • Acoustic insulation for plants and industrial facilities
  • Exterior wall insulation
  • Fire door core material
  • Sanitary facilities
3. Specification
Density(kg/m³) 60 - 200
Thickness(mm) 30 - 100
Dimensions(mm) 1,200 x 600 / 1,000 x 630 / 1,000 x 600
Thermal Conductivity(W/m·K) 0.042
Fire Resistance Rating Euroclass A1
Maximum Operating Temperature(℃) 650
