Textiles

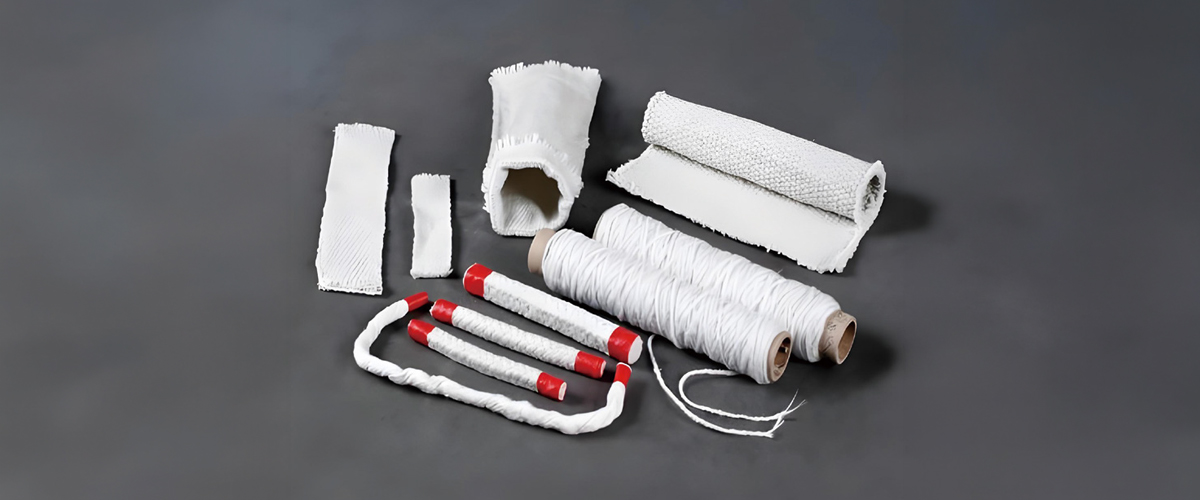

SDTECH High-Temperature Fiber Fabric is manufactured from a variety of high-performance fiber materials, including ceramic fiber, alkali-free fiberglass, high-silica fiber, and PAN oxidized fiber. The product line encompasses a wide range of technical textiles, including yarn, cloth, tape, twisted rope, packing, tube, and coated fabric. It is widely used in industrial applications, including insulation, heat retention, and sealing.
1. Features
- Excellent high-temperature heat resistance
- Resistance to chemical corrosion
- Outstanding thermal shock resistance
2. Applications
- Tape: Industrial insulation, pipe and electrical cable jacketing, flange joint insulation, friction reinforcement material, and more
- Cloth: Large-area industrial insulation, fireproofing, heat shielding, coated fabric, and base fabric applications
- Coated Cloth: Fire curtains, smoke barriers, decorative cotton fabric, heat-resistant blankets, insulation material, and more
- Packing: High-temperature zones of all types, boilers and heat exchangers, burner sealing, furnace sealing, exhaust gas and duct insulation, high-temperature valve sealing, and more
- Twisted Rope & Tube: Insulation jacketing for high-temperature wires and cables, insulation and sealing for high-temperature piping, and more
3. Specification
| Division | Ceramic Fiber (Chrome Steel Wire Reinforced) | Ceramic Fiber(Fiberglass Reinforced) | Fiberglass (Bulk E-Glass) | |
|---|---|---|---|---|
| Classification Temperature(℃) | 1,050 | 650 | 550 | |
| Density(kg/m³) | 550 - 1,400 | 550 - 1,400 | ||
| Tape | Thickness : 1.5, 2.0, 3.0 | Thickness : 1.5, 2.0, 3.0 | Width : 10, 15, 25, 50, 75, 100, 120, 150 | |
| Cloth | Thickness : 1.5, 2.0, 2.5, 3.0, 5.0 | Thickness : 1.5, 2.0, 2.5, 3.0, 5.0 | Width : 1,000 – 1,500 | |
| Coated Cloth | Thickness : 1.5, 2.0, 3.0 | Thickness : 1.5, 2.0, 3.0 | Width : 1,000 – 1,500 | |
| Packing | Diameter / Corner : 5, 6, 8, 10, 12, 13, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50 | |||
| Twisted Rope | Diameter : 3, 4, 5, 6, 8, 10, 12, 13, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50 | |||
| Tube | Inner Diameter : 12, 14, 15, 16, 18, 20, 25, 30, 50, 100 | |||
