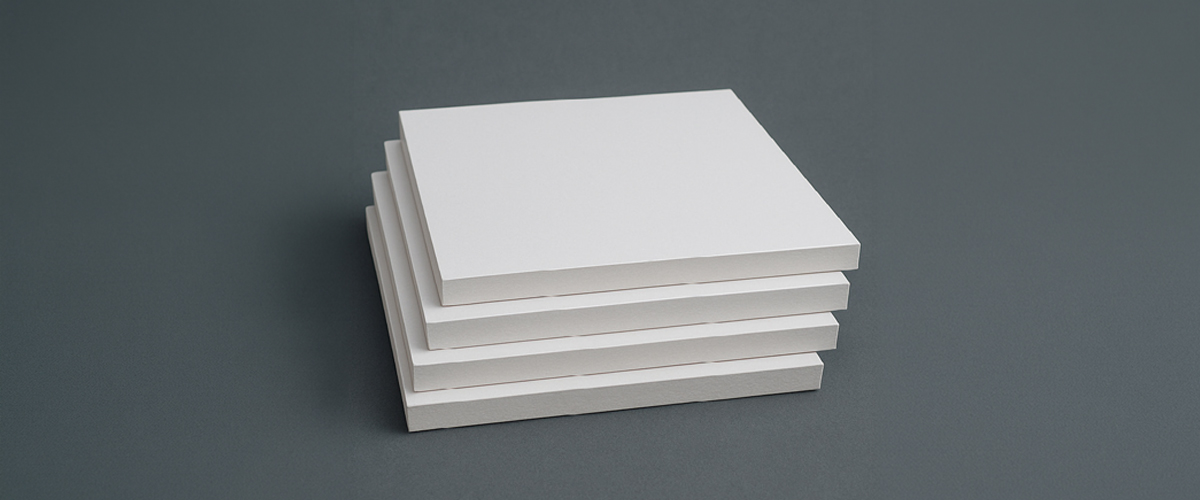

Ceramic Fiber Board
SDTECH Ceramic Fiber Board is a high-performance refractory insulation material manufactured through a wet forming process using both organic and inorganic binders.
With an operating temperature range of 950°C (1,700°F) to 1,450°C (2,600°F), it is well suited for applications requiring high insulating performance and structural stability, such as melting and electric furnaces, doors, and ducts. Its excellent insulating properties and low thermal mass maximize energy efficiency, while its light weight and ease of fabrication make for straightforward installation.
1. Features
- Low thermal conductivity and excellent insulating performance
- Minimal energy loss due to low thermal mass
- Asbestos-free (eco-friendly material)
- Outstanding thermal shock resistance and high-temperature stability
- Excellent resistance to chemical corrosion
- Superior sound absorption
- High tensile strength and durability
- Easy to cut and install
2. Applications
- Lining insulation for melting furnaces and electric furnaces
- Backup insulation for refractory brick reinforcement
- Insulation for industrial heat treatment equipment and machinery
3. Dimensions
- Thickness : 6 / 10 / 12.5 / 25 / 38 / 50
- Length : 1,000 / 600
- Width : 1,200 / 1,000 / 900
4. Specification
| Division | SD 1,100 | SD 1,260 | SD 1,360 | SD 1,430 | SD 1,500 | |
|---|---|---|---|---|---|---|
| Classification Temperature(℃) | 1,100 | 1,260 | 1,360 | 1,430 | 1,500 | |
| Density(kg/m³) | 250 - 400 | |||||
| Permanent Linear Shrinkage(%) (℃×24hr) | ≤ 4 (1,000℃) | ≤ 4 (1,200℃) | ≤ 4 (1,300℃) | ≤ 4 (1,400℃) | ≤ 4 (1,400℃) | |
| Thermal Conductivity (w/m·k) (128kg/m³) | 0.13 (600℃) 0.15 (800℃) |
0.13 (600℃) 0.19 (1,000℃) |
0.13 (600℃) 0.19 (1,000℃) |
0.13 (600℃) 0.19 (1,000℃) |
0.13 (600℃) 0.19 (1,000℃) |
|
| Chemical Composition(%) | Al₂O₃ | 42 - 44 | 45 -46 | 39 | 39 - 40 | 43 |
| Al₂O₃ + SiO₂ | 96 | 98 | - | - | - | |
| SiO₂ | - | - | - | - | - | |
| Cr₂O₃ | - | - | - | - | 2.5 - 3.0 | |
| ZrO₂ | - | - | - | 15 - 17 | - | |
